SKU
HI6100410

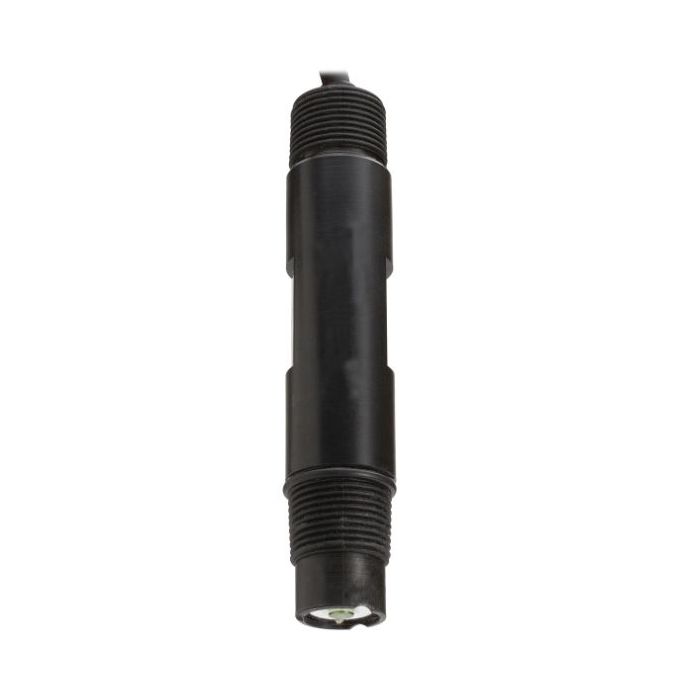

AmpHel® Flat-tip pH Electrode - General Purpose, 10m Cable

277,00 €
Auf Lager

This amplified pH electrode is designed for industrial applications with features such as a PTFE junction, general purpose glass, and PVDF body. With it's durable design, you can count on this electrode to stand up to your process environment.

  • Flat-tip pH electrode.
  • General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
  • Built for everyday, demanding use in industrial applications.

Flat tipped pH electrode

Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

PVDF body

PVDF offers characterized by high thermal stability and excellent chemical resistance.



BNC connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.

General purpose glass formulation

General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.





Specification

Specification Name Detail
SKU HI6100410
Range pH: 0-13
Tip Shape Flat
Body PVDF
Junction Double, PTFE
Glass Type GP (-5 to 80°C)
Electrolyte Polymer
Matching Pin Yes
Amplifier No
Temperature Sensor No
Max Pressure 6 bar (87 psi)
Connector BNC
Cable 10m
Warranty 6 months
