SKU
HI3211T

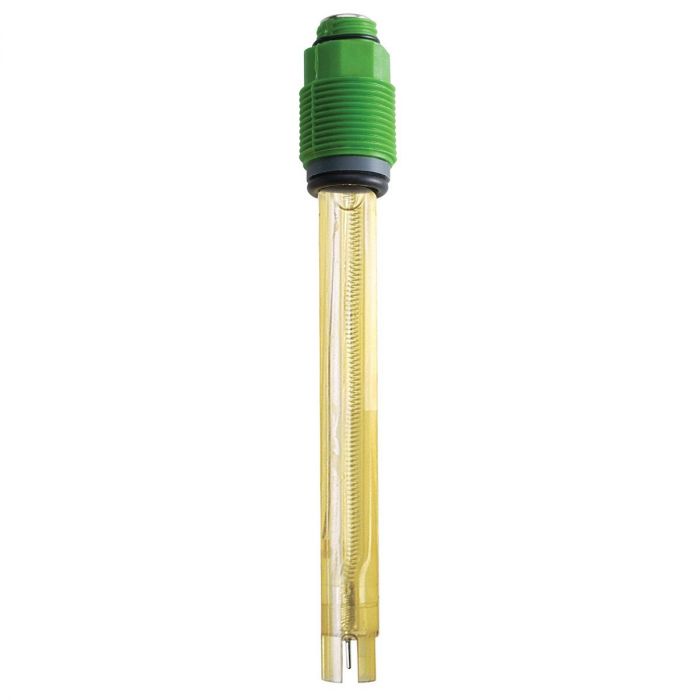

Combination ORP Electrode - PVDF-body, Platinum Sensor, T-type Connector - HI3211T

194,00 €
Auf Lager
This combination ORP electrode with glass-body is designed for industrial applications with features such as platinum sensor, a cloth junction, and T-type connection. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Combination glass-body ORP electrode.
  • Screw cap connector and PG 13.5 thread.
  • Built for everyday, demanding use in industrial applications.

Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.

Platinum sensor

Provides the best response over a wide range of applications.

Cloth junction

Clear the junction by simply extracting 1/8” of the junction from the electrod to expose a new portion, resulting in a renewed junction.

Glass body

Glass body electrodes are easier to clean, can withstand high pressure and high-temperature applications, and offers high resistance to aggressive chemicals.

T-type connector

Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.



Specification

Specification Name Detail
SKU HI3211T
Tip Shape Platinum
Body Glass
Junction Double, cloth
Glass Type (0 to 80°C/ 32 to 176°F)
Electrolyte Polymer
Matching Pin No
Amplifier No
Temperature Sensor No
Max Pressure 3 bar (43.5 psi)
Connector T-type
Length 140mm
Warranty 6 months
