SKU
HI1090B

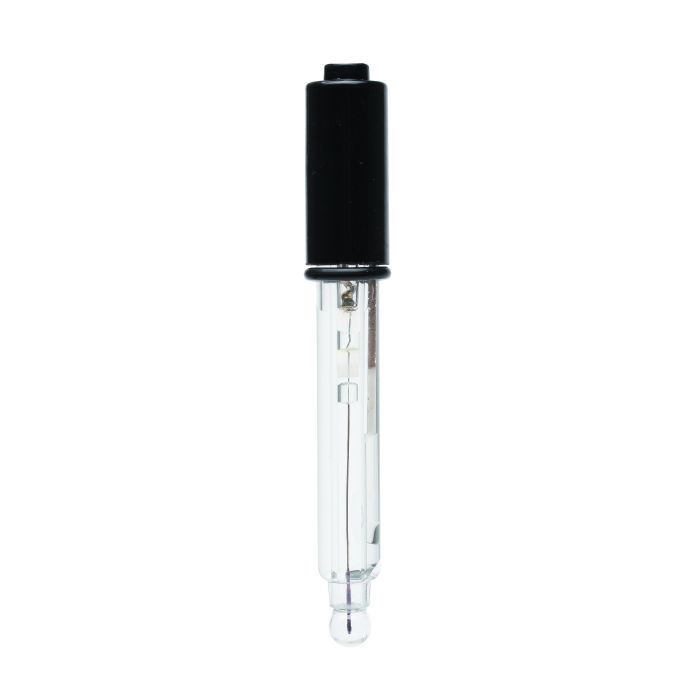

Combination pH electrode (Glass body and 5 m cable) - HI1090B/5

182,25 €
Auf Lager
This combination pH electrode (glass-body) is designed for industrial applications with features such as a ground glass junction and high temperature glass. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Combination glass-body pH electrode.
  • High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.
  • Built for everyday, demanding use in industrial applications.

Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.

Glass body

Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals.

High temperature glass formulation

High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.

BNC connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.

Flexible instalaltion

All Hanna pH and ORP electrodes can be mounted with the Hanna inline and submersion assemblies.

Specifications

pH Junction/Flow rate

Double, ground glass

Type of electrolyte

Polymer

Body material

Glass

Glass type

HT (-5 to 95°C/ 23-203°F; 0 to 14 pH)

Mathcing pin

No

Max. Pressure

3 bar (43.5 psi)

Overall length

110mm

Temperature Sensor

No

Outer Diameter

12mm

Cable

5m

Connector type

BNC
