SKU
HI3011

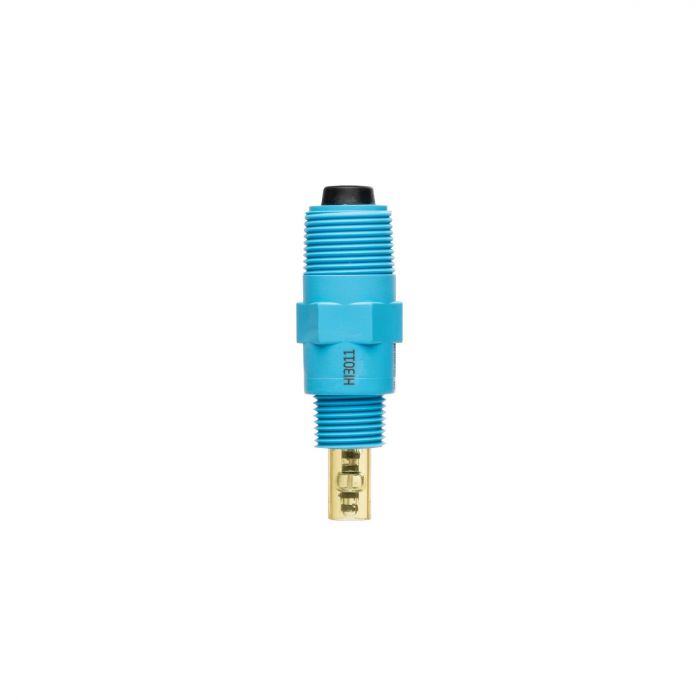

Flow-thru Conductivity Probe - 3m Cable - HI3011
220,00 €
Auf Lager
This four-ring flow-thru conductivity probe measures in industrial applications with a platinum sensor. With its durable design, you can count on this electrode to stand up to your process environment.
- Four-ring probes measure conductivity with platinum sensors.
- Threaded for flow-thru mounting, submersion, or pipe mounting.
- Built for everyday, demanding use in industrial applications.
Flow-thru conductivity probe
Designed for continuous flow-thru monitoring in industrial applications.
Four-ring method
Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
No temperature sensor
Cannot provide compensated measurements.
No connector
Standard ½” external thread on the front for flow-thru mounting and ¾” threads on the back for submersion or pipe mounting.
PEI protective cover
Can be removed for quick maintenance.
Specifications
|
Body Material |
PEI, PVDF |
|
Glass Type |
(0 to 80°C/ 32 to 176°F) |
|
Matching Pin |
No |
|
Max. Pressure |
6 bar (87 psi) |
|
Overal Length |
89mm |
|
Temperature Sensor |
No |
|
Amplifier |
No |
|
Cable |
3m |
