SKU
HI7638

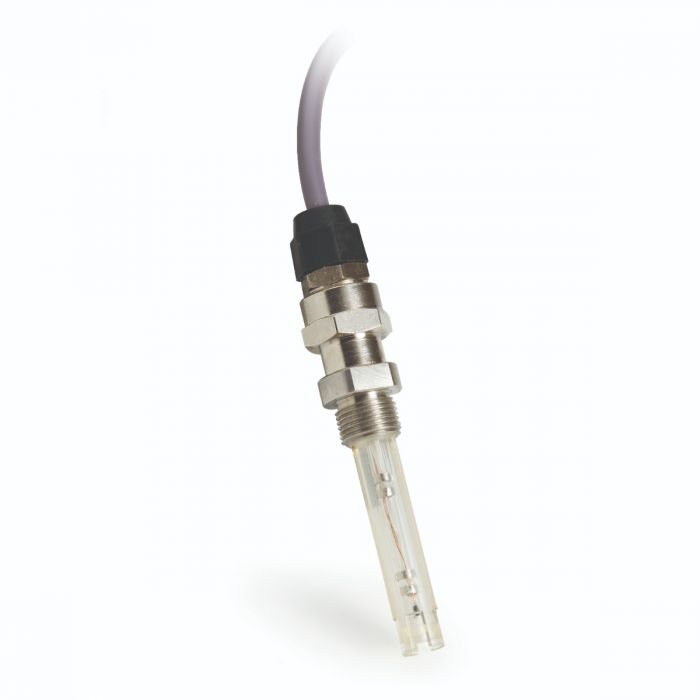

In-line Conductivity Probes with Platinum Ring

415,00 €
Nicht lieferbar

This four-ring in-line probe measures conductivity in industrial applications with a platinum ring and NTC sensor for Automatic Temperature Compensation. With it's durable design, you can count on this electrode to stand up to your process environment.

  • Four-ring probes measure conductivity with platinum sensors.

  • Built-in temperature sensor for Automatic Temperature Compensation.

  • Built for everyday, demanding use in industrial applications.

In-line conductivity probe

Bottom of Form

Suitable for direct immersion in pipes.

Four-ring method

Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.

NTC sensor

Provide accurate and effective temperature compensation.



Color-coded wires

Variety of cable lengths incorporating color-coded wires for easy connection to transmitters.

Platinum sensor

Provides the best response over a wide range of applications.

PEI body

PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.

Specification

Specification Name Detail
SKU HI7638
Body PEI, glass
Glass Type (0 to 120°C/ 32 to 248°F)
Matching Pin No
Amplifier No
Temperature Sensor Yes
Temperature Sensor Type NTC Sensor
Temperature Compensation Automatic, 0 to 50°C
Max Pressure 5 bar (72.5 psi)
Connector Color coded wires
Cable 3m
Warranty 6 months
