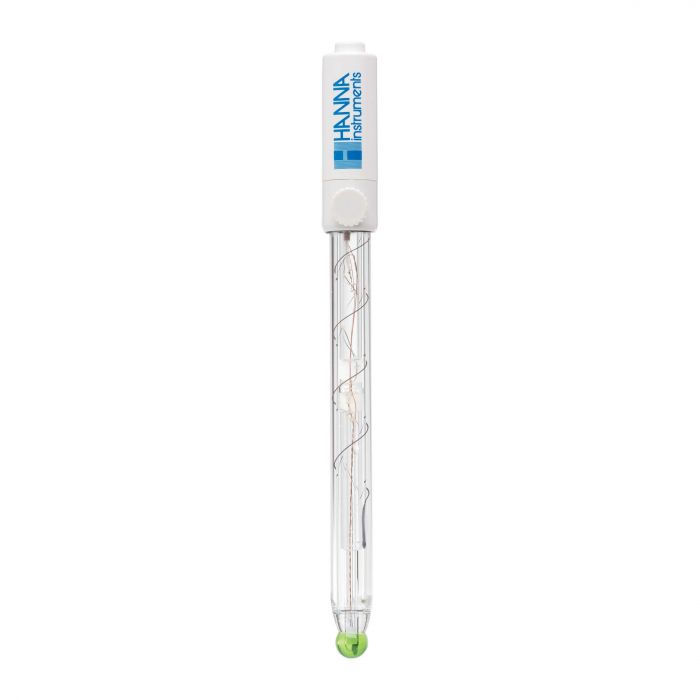

pH Electrode for Drinking Water with Quick Connect DIN - FC2153
- Triple Ceramic Junction
- Built-In Temperature Sensor
- Refillable Electrode
pH Electrode for Drinking Water
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The FC2153, pH electrode for drinking water uses low temperature (LT) glass, spherical bulb, glass body, triple ceramic junction and is refillable with 3.5M KCl + AgCl.
Low-Temperature Glass Formulation
The pH measurement of solutions at low temperatures can be difficult due to the effect that temperature has on the resistance of the glass membrane. A standard pH electrode uses general-purpose (GP) glass and has a resistance of 100 megaohms at 25°C. This resistance will increase as the temperature decreases. If the resistance increase above an optimum range then the measurement will be affected. Some pH electrodes use low temperature (LT) glass for the pH-sensitive glass membrane. The resistance of LT glass is around 50 megaohms at 25°C. As the temperature of the glass decreases, the resistance of the LT glass approaches the resistance of GP glass. The FC2153, pH electrode for drinking water is made with LT glass and is suitable to use with samples that measure from 0 to 70°C.
The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.
The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature-dependent. The faster the equilibrium the steadier the reference potential.
Triple Ceramic Junction
The triple ceramic junction allows a faster flow rate of electrolyte from the reference cell into the solution. A standard pH electrode will use a single ceramic junction that allows for 15 to 20 µL/hour of electrolyte to flow; the pH electrode for drinking water FC2153 has three ceramic junctions, proviQuick DINg for 40 to 50 µL/hour of electrolyte to flow. This high flow rate provides faster electrode response and more stable measurement in samples that are low in conductivity, such as drinking water.
The pH electrode for drinking water FC2153 is a refillable probe. It is a single-junction pH electrode and uses the HI7071 3.5M KCl + AgCl electrolyte fill solution. If using a refillable pH electrode, the fill cap should be loosened/removed prior to calibration and measurement. Loosening/removing the cap creates positive head pressure in the reference cell increasing the flow rate of electrolyte through the outer junction. A higher flow rate will result in a faster and more stable reading.
Quick DIN Connector
The pH electrode for drinking water FC2153 uses a Quick DIN connector. This type of connector is proprietary to the meter they are to be used with. The FC2153 is the replacement electrode for the HI99192. Other types of connectors include BNC, screw type, T-type, and 3.5mm.
|Junction / Flow Rate||ceramic, triple|
|Electrolyte||KCl 3.5M + AgCl|
|Max Pressure||0.1 bar|
|Range||pH: 0 to 12|
|Recommended Operating Temperature||0 to 70°C (32 to 158°F) - LT|
|Tip / Shape||spheric (dia: 9.5 mm)|
|Cable||coaxial; 1 m (3.3’)|
|Recommended Use||drinking water|
